LED Marine / RV Ceiling Dome Lamps
LED Marine / RV Lights
The LED Marine/RV lamps are surface mounted and feature a unique installation system where the fastening load is taken up by a heavy-duty nylon bush to eliminate possible stress on the lamp housing. Purposely designed for engine rooms, storage lockers, lazarettes and applications where reliability must not be compromised.
Low EMC noise ensures that these lamps won't interfere with radio communications. Completely sealed to ISO 8846 and have protection against ignition of surrounding ffammable gases. This means they can be used in high risk areas, interior and exterior, wet or dry locations.
These lamps are impervious to the Marine / RV environment and can be fftted throughout the Vessel/RV, maintaining a consistent appearance.
| Brand Name | LED Marine / RV Lights |
| Model Number | LED Marine / RV Ceiling Dome Lamps |
| Lens material | UV resistant enhanced impact acrylic |
| Shroud Material | Heavy duty nylon |

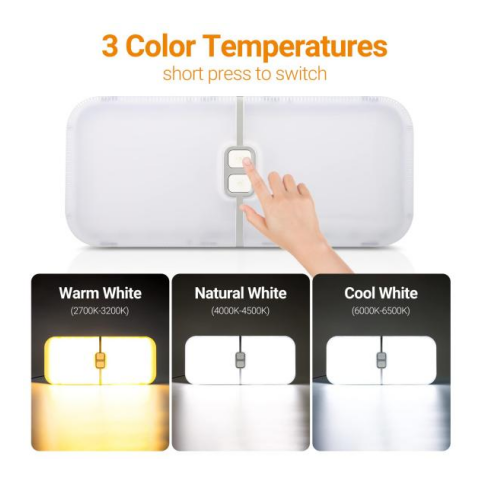

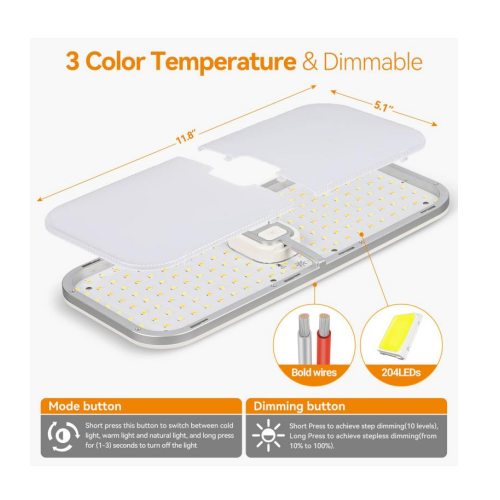

| Colour Temperature | 3 color switch(2700-6500K) |
| Power Consumption | <15W ( <1.20A @ 12V / <0.60A @ 24V ) |
| Voltage Protection | Spike protected to +500 volts Reverse polarity protected to -700 volts |
| Operating Voltage | 12 / 24V DC |
| Cable | 500mm of tinned marine cable |
| Protection | IP67 (Completely Sealed) |
| Series | |||
|---|---|---|---|
|
LED Marine / RV Ceiling Dome Lamps | ||
|
LED Marine / RV Ceiling Dome Lamps | ||
|
LED Marine / RV Ceiling Dome Lamps | ||
|
|
LED Marine / RV Ceiling Dome Lamps | ||
|
LED Marine / RV Ceiling Dome Lamps | ||
|
LED Marine / RV Ceiling Dome Lamps |
| Option | Part Number | ||
|---|---|---|---|
|
|
White Light, Black Housing - Spread | 2LT 980 740-001 | |
|
|
White Light, White Housing - Spread | 2LT 980 740-011 | |
|
|
White Light, Black Housing - Spot | 2LT 980 740-201 | |
|
|
White Light, White Housing - Spot | 2LT 980 740-211 |
| Housing description | ‘Non metal’ thermally conductive polymer housing |
| Lens material | Grilamid |
| Bracket | Polished 316 stainless steel |
| Colour temperature | 5000K (White) |
| Cable | Pre-wired with 2.5m of triple core marine cable |
| Operating Voltage | Multivolt? 9-33V DC |
| Degree of Protection | IP 67 - Completely Sealed |
| High Power Consumption | 18W (<1.5A@12V / <0.75A@24V) |
| Low Power Consumption | 2W (<0.17A@12V / <0.08A@24V) |
| Weight | 450g (including cable) |
| Light Output | 1500 lumens (White) |
| Approvals | CE, RCM |
| Manufactured in | New Zealand |
